Products - TSC Printers - TTP2410M

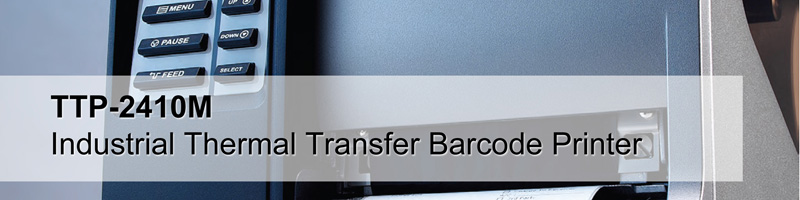

TTP-2410M

TSC’s new TTP-2410M die-cast aluminum label printer is designed to meet the most demanding bar-coding and identification requirements, offering more standard features than any comparable printer – at a very affordable price.

The TTP-2410M boasts a print speed up to 12 ips – the fastest in the TSC product lineup – and the fastest throughput of any printer in its class. With its combination of speed and durability. the TTP-2410M is ideal for mission-critical printing applications – either on-demand or batch.

TTP-2410M standard features include internal Ethernet, USB 2.0 and PS/2 keyboard connectivity, 32 MB SDRAM, 8 MB Flash memory, and an SD memory-card slot for inexpensively adding up to 4 GB of additional Flash storage. The TTP-2410M supports up to a 600-meter-long ribbon, along with a full 8.2-inch OD media roll. An optional peel-off kit includes an internal rewinder and a label peel-and-present sensor. The unit comes with a 2-year limited warranty.

300 DPI/ 600 DPI models

The TTP-2410M series is available in a 300-dpi model (TTP-346M), which operates at speeds up to 8 ips and can be ordered either from the factory or as a field upgrade.  An upgrade kit, which includes a printhead and firmware, takes 30 minutes to install.

Also available as a factory option is a 600 dpi model (TTP-644M), which operates at speeds up to 4 ips. Both the TTP-346M and TTP-644M offer 32 MB SDRAM, 8 MB Flash memory and an SD card slot for expanded memory.

High performance at an affordable price

The TTP-246M Plus die-cast bar code printer is designed to meet the most demanding identification and labeling requirements – at an affordable price. It features a user-friendly 6-button display and side-load design; standard serial, parallel and USB connectivity; and optional Ethernet networking for simple integration with other devices.

Optional 300 dpi capability is available either from the factory or as a field upgrade. An upgrade kit, which includes a printhead with firmware, takes 30 minutes to install.

Powerful TSPL-EZ™ printer programming language

The TTP-2410M is packaged with TSC’s powerful TSPL-EZ™ firmware, which supports three printer languages: TSC printer language, TPLE (Translation Printer Language Eltron®), and TPLZ (Translation Printer Language Zebra®). TSPL-EZ™ features internal scalable True Type fonts, along with a BASIC interpreter with file manager for creating powerful printer-interface applications with multiple host types.

Specifications:

ModelPrint MethodResolutionMax. Print WidthMax. Print LengthMax. Print Speed
TTP-2410MThermal Transfer203 dpi4.09"160"12 ips
Key Features
  • Heavy duty die-cast aluminum design
  • 300 dpi & 600 dpi resolution options
  • 600 meter ribbon supply
  • Large LCD display with 6-button menus
  • 8 MB Flash and 32 MB SDRAM memory
  • SD Flash memory expansion up to 4 GB
  • Up to 305 mm (12") per sec. print speed
  • 32 bit RISC processor
  • Internal Ethernet standard
  • PS/2 keyboard interface for stand-alone printing
  • TSPL-EZ(TM) firmware for plug-n-play ease
  • Powerful basic programming tools
  • Options include: peel, present & rewind. General purpose IO connectivity, external Bluetooth module. Both knife & rotary cutter
Applications
  • Healthcare
    • Document management
    • Healthcare patient safety
    • Specimen labeling and patient tracking
  • Other Markets
    • Industrial-duty printing
    • Compliance labeling
    • Product marking
    • Inventory control
    • Work in process
    • Order fulfillment
    • Distribution
    • Brand marketing featuring graphics, logos and texts
    • Shipping/ receiving
    • Ticketing
    • Electronics & jewelry labeling
