Products - TSC Printers - TTP384M

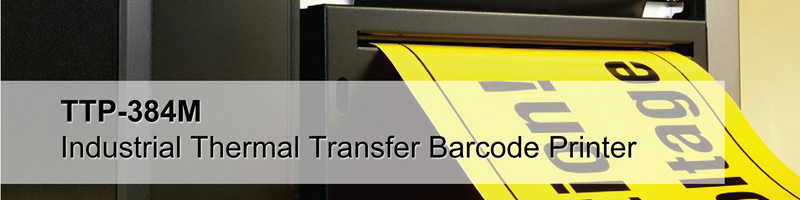

TTP-384M

The affordable and easy-to-use TTP-384M wide-format thermal transfer printer is ideally suited for compliance labeling, brand marketing, inventory control, drum labeling, warning signs and a host of other signage solutions.

TTP-384M can accommodate label widths up to 9.5 inches, with a maximum print width up to 8.64 inches at 300 dpi resolution. It also is designed to print wide-lateral bar codes without the need for image rotation.

The TTP-384M features a die-cast aluminum chassis and is packed with standard features, including a large LCD display, 8 MB Flash memory, 32 MB SDRAM, an SD card slot for adding up to 4 GB of additional memory storage, a built-in internal Ethernet 10/100 print server, and USB 2.0, Centronics, RS-232C and PS/2 keyboard connectivity.

The TTP-384M print assembly handles ribbons up to 600-meters long, accommodates a full 8.2-inch OD media roll and features a center-bias label handling mechanism that makes media loading and adjustment easy. A large LCD control panel makes it easy to manage printer settings, while the built-in Ethernet print server enables operators to control and monitor the printer remotely.

Specifications:

ModelPrint MethodResolutionMax. Print WidthMax. Print LengthMax. Print Speed
TTP-384MThermal Transfer300 dpi8.64"50"4 ips
Key Features
  • Die-cast chassis, sheet metal structure with clear media view window
  • Can manage label widths up to 9.5" with a maximum print width up to 8.64" wide at 300 dpi high resolution
  • 600 meter ribbon supply
  • Large LCD display with 6-button menus
  • 8 MB Flash and 32 MB SDRAM memory
  • SD Flash memory expansion up to 4 GB
  • Up to 102 mm (4") per sec. print speed
  • Internal Ethernet standard
  • PS/2 keyboard interface for stand-alone printing
  • Powerful basic programming tools
  • Options include: GPIO connectivity, Bluetooth module & cutter module
Applications
  • Healthcare
    • Document management
    • Patient Tracking
    • Specimen labeling and patient tracking
  • Other Markets
    • Business / Office
    • Compliance labeling
    • Product marking
    • Inventory control
    • Document management
    • Shelf labeling
    • Asset tracking
    • Brand marketing featuring graphics, logos and texts
    • Pallet / barrel labelling
    • Custom signage
    • Multiple-ups labels (two or more labels across)
